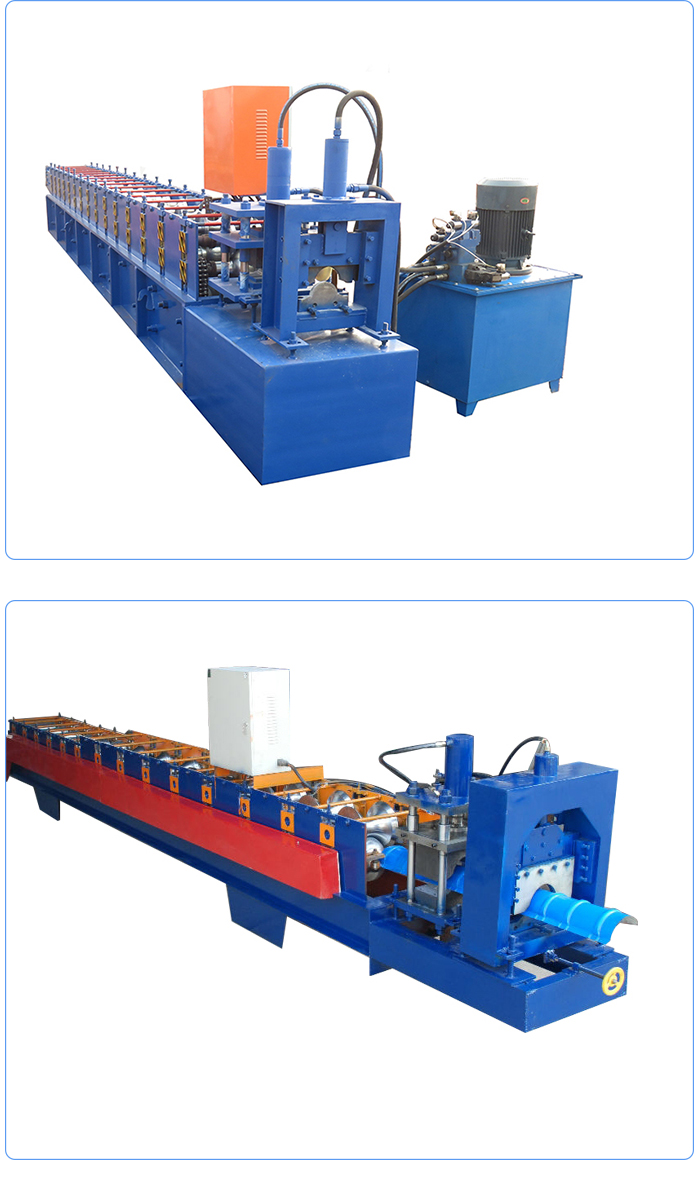

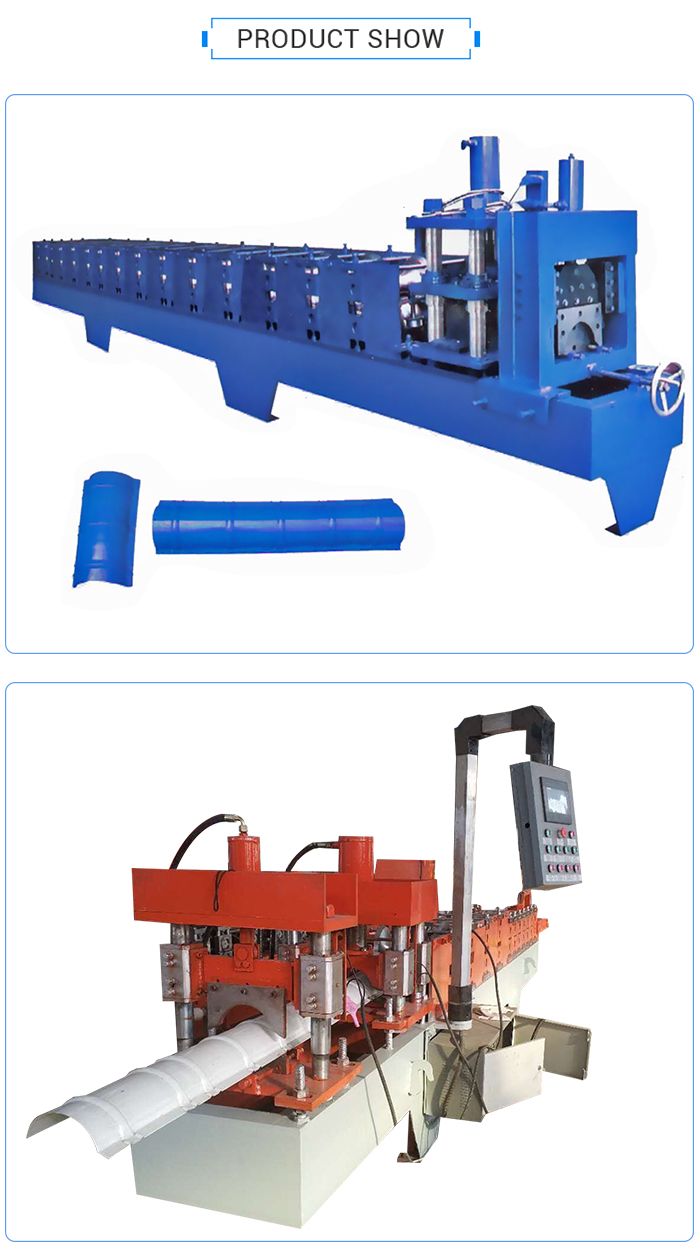

Ridge Cap Angle Roof Tile Roll Forming Machine
Product Description
Ridge Cap Angle Roof Tile Roll Forming Machine
NO | Name | Specification | |
1. |
Decoiler | Operation | Manual type |
Width Coil | 1250mm | ||
Weight capacity | Max 5T | ||
Inner Diameter | 470mm-530mm | ||
2.
|
Forming machine
| Roller station | 14rows |
Diameter of shaft | 70mm | ||
Material of rollers | 45#Steel | ||
Surface of rollers | Plate hard Chrome 0.05mm | ||
Main bearing | 6210 /bearing steel | ||
Frame | 300Mm C-Beam | ||
Chain | 1inch | ||
3. |
Cut Off | Operation | Automatic hydraulic type |
Material of blade | CR12 steel | ||
Oil pressure station | Motor,oil pump,electromagnetic valve etc. | ||
Motor of oil pressure station | 3KW | ||
Working pressure | 0-14MPA | ||
4. |
Power | Main motor | 5.5KW |
voltage | 380V 50HZ | ||
5.
|
Electric Box With touch screen |
Data input | imperial system (inches and decimals) |
PLC control system | Delta Brand | ||
Frequency converter | Delta Brand | ||
Counter | |||
On-Off | |||
8. | Language | English | |
9. | Length of line | 8Meters | |
10. | Speed | 84M/Minute | |
Terms of payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 10 days after receipt of advance payment.
Service: we sent technician to your country to fix the machine.
The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 200 USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay the shipping fee.
1. Q: Are you a manufacturer?
A:Yes, we are manufacture since 1996 with four branch factories.
2. Q: How should I do if I would like to order my machine?
A: Send me your design drawing if you have. Or tell me your design idea. I arrange my engineer to drawing it for your confirmation.
3. Q: What details of the machine you should get from me?
A: I will confirm all details with you, such as the voltage in your city.
4. Q: I am new in this field. How could i understand the machine very well?
A: Why not contact me whatsapp: +86 1313 174 9193. I promise you that you will be professional after you get from me. It is true thing.
5. Q: I receive a lot of quotations, they are big range, How could i choose?
A: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.
6. Q: Can you give me one suggestion for ordering the machine?
A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.
7. Q: I have not whatsapp and skype, how could I contact with you?
A: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.
8. Q: What do you think what is the most important for roll forming machine?
A: Drawing ! Drawing ! Drawing.
9. Q: Can you use other brand of Spare parts for me if i want?
A: No problem if you want to pay the money.
